电子线,电源线,屏蔽线的一些参考资料

单芯线载流量
AWG线规对应平方数及电流等
AWG线规对应的最大直流电阻(32AWG~10AWG)
多头拉丝与单头拉丝工艺之比较
PVC、PE等塑料电线电缆押出机的简单介绍
电线按UL耐油测试
电线电缆绝缘材料的选择
氟塑料使用特性简介
弱电施工常用的部分工具及材料
RAL劳尔色卡
通信电缆的趋肤效应,趋肤深度

燃烧测试 CSA Flame Test Ratings



单芯线载流量

电子电气装备中使用的耐高温电线电缆在环境温度60℃时长期连续负荷下的允许载流量。对于软线、屏蔽线也可参考表中的规定选择额定载流量

标称截面积:/mm2

单根载流量:/A

成束载流量:/A

导线最高长期允许工作温度:/℃

导线最高长期允许工作温度:/℃

80

105

150

200

250

80

105

150

200

250

0.3

6

9

12

15

17

3

4







0.5

8

12

16

20

24

3

5

7

8

10

0.75

10

15

22

27

31

4

6

9

11

13

1

12

18

26

32

37

5

8

11

13

16

1.2

13

20

28

35

40

5

8

12

15

17

1.5

16

23

33

41

48

7

10

14

17

20

2

19

29

40

50

58

8

12

17

21

24

2.5

22

34

48

60

70

9

14

20

25

30

3

24

37

53

66

76

10

16

22

28

32

4

29

43

62

77

90

12

18

26

32

38

5

34

51

72

89

103

14

22

30

38

43

6

38

56

79

99

114

16

24

33

42

48

8

46

69

96

120

140

19

29







10

55

82

117

146

168

23

35

49

62

71

13

64

97

135

175

200

27

41







16

74

112

159

197

230

31

47

67

83

97

20

84

128

180

240

275

35

54







25

98

148

210

263

303

41

62

89

111

128

35

121

184

262

325

378

51

78

110

137

159

50

160

237

331

409

470

67

100

140

172

198

70

203

300

419

517

595

86

126

177

218

251

95

235

347

500

630

740

99

146









返回页首》

AWG线规对应平方数及电流等

AWG

实心导

绞合导体

直径标称值

最小值

标称值

最小值

Mils

(mm)

Mils

(mm)

cmil

(mm2 )

cmil

(mm2 )

32

8.0

0.203

7.92

0.201

64.0

0.0324

62.7

0.0318

31

8.9

0.226

8.81

0.244

79.2

0.0401

77.6

0.0393

30

10.0

0.254

9.9

0.251

100

0.0507

98

0.0497

29

11.3

0.287

11.2

0.284

128

0.0647

125

0.0633

28

12.6

0.320

12.5

0.318

159

0.0804

156

0.0790

27

14.2

0.361

14.1

0.358

202

0.102

198

0.100

26

15.9

0.404

15.7

0.399

253

0.128

248

0.126

25

17.9

0.455

17.7

0.450

320

0.162

314

0.159

24

20.1

0.511

19.9

0.506

404

0.205

396

0.201

23

22.6

0.574

22.4

0.568

511

0.259

501

0.254

22

25.3

0.643

25.0

0.637

640

0.324

627

0.318

21

28.5

0.724

28.2

0.717

812

0.412

796

0.404

20

32.0

0.813

31.7

0.805

1020

0.519

1000

0.509

19

35.9

0.912

35.6

0.904

1290

0.653

1264

0.641

18

40.3

1.02

40.0

1.016

1620

0.823

1588

0.807

17

45.3

1.15

44.9

1.140

2050

1.04

2009

1.02

16

50.8

1.29

50.3

1.278

2580

1.31

2528

1.28

15

57.1

1.45

56.5

1.435

3260

1.65

3195

1.62

14

64.1

1.63

63.5

1.613

4110

2.08

4028

2.04

13

72.0

1.83

71

1.81

5180

2.63

5076

2.58

12

80.8

2.05

80

2.03

6530

3.31

6399

3.24

11

90.7

2.30

90

2.28

8230

4.17

8065

4.09

10

101.9

2.588

101

2.56

10380

5.261

10172

5.16

9

114.4

2.906

113

2.88

13090

6.631

12828

6.50

8

128.5

3.264

127

3.23

16510

8.367

16180

8.20

7

144.3

3.665

143

3.63

20820

10.55

20404

10.34

6

162.0

4.115

160

4.07

26240

13.30

25715

13.03



返回页首》



Stranded Tinned Copper Wire American Wire Gauge (32AWG~6AWG)

Gage,
(AWM)

Stranded
(No./mm)

Nominal(inches)

Diamete(mm)

Nominal Area(mm2)

Approx. Weight(kg/km)

Resistance(20°C): Ω/km

32

7/0.08

0.0094

0.24

0.0352

0.31

596.73

30

7/0.10

0.0118

0.30

0.0550

0.49

354.33

28

7/0.127,
19/0.08

0.0150,
0.0157

0.38,
0.40

0.0887,
0.0955

0.79,
0.85

223.75,
222.11

26

7/0.16,
11/0.127,
26/0.08,
30/0.08

0.0189,
0.0193,
0.0185,
0.0201

0.48,
0.49,
0.47,
0.51

0.1407,
0.1393,
0.1307,
0.1508

1.25,
1.24,
1.17,
1.35

139.76,
141.89,
150.68,
134.18

24

11/0.16,
7/0.20,
17/0.127,
19/0.127

0.0240,
0.0240,
0.0236,
0.0252

0.61,
0.61,
0.60,
0.64

0.2212,
0.2266,
0.2154,
0.2407

1.98,
2.02,
1.93,
2.15

88.36,
85.96,
95.12,
83.33

22

17/0.16,
19/0.16,
7/0.254

0.0299,
0.0315,
0.0299

0.76,
0.80,
0.76

0.3240,
0.3820,
0.3550

3.06,
3.42,
3.17

60.16,
52.17,
54.79

20

26/0.16,
16/0.20,
7/0.32,
10/0.254,
19/0.20,
20/0.18

0.0370,
0.0370,
0.0378,
0.0366,
0.0398,
0.0366

0.94,
0.94,
0.96,
0.93,
1.01,
0.93

0.5230,
0.5180,
0.5660,
0.5067,
0.6149,
0.5090

4.68,
4.63,
5.06,
4.53,
5.50,
4.55

37.56,
37.90,
34.12,
38.71,
32.02,
38.58

18

41/0.16,
7/0.40,
19/0.254,
26/0.20,
16/0.254,
34/0.18

0.0465,
0.0475,
0.0500,
0.0472,
0.0461,
0.0476

1.18,
1.21,
1.27,
1.20,
1.17,
1.21

0.8240,
0.8973,
0.9627,
0.8415,
0.8110,
0.8650

7.37,
8.01,
8.61,
7.53,
7.25,
7.74

24.82,
21.46,
20.41,
23.62,
25.20,
22.98

16

26/0.254,
65/0.16,
54/0.18,
19/0.287

0.0591,
0.0587,
0.0602,
0.0563

1.50,
1.49,
1.53,
1.43

1.3200,
1.3100,
1.3700,
1.2292

11.79,
11.70,
12.30,
10.99

15.06,
15.19,
14.52,
15.81

14

41/0.254

0.0740

1.88

2.0800

18.60

9.65

12

65/0.200,
65/0.254,
19/0.455

0.0744,
0.0929,
0.0898

1.89,
2.36,
2.28

2.1000,
3.2936,
3.0894

18.84,
29.64,
27.72

9.55,
6.07,
6.07

10

37/0.400,
105/0.254,
65/0.320

0.1114,
0.1181,
0.1177

2.83,
3.00,
2.99

4.7430,
5.3204,
5.2276

42.54,
48.29,
47.27

4.13,
3.73,
3.73

8

55/0.450,
7/19/0.287,
7/96/0.127

0.1654,
0.1614,
0.1693

4.20,
4.10,
4.30

8.7474,
8.6041,
8.5126

79.40,
79.67,
78.82

2.23,
2.27,
2.23

6

7/19/0.361

0.2069

5.25

13.613

126.05

1.43



返回页首》

电线按UL耐油测试

UL1581 .480.6&.480.7浸油老化后绝缘和护套的物理性能

聚合物名称



额定耐油
温度℃ (℉)



浸油老化后物理性能

浸油条件

最大未老化值百分数

油温
℃±2 (℉±3)

时间
小时

伸长率
百分数

抗张强度
百分数

PVC-聚氯乙烯



TPE-热塑性弹性体
XL-交联热固性材料

60°C (140)
75°C (167)
80°C (176)
60°C (140)
60°C (140)

100(212)
75(167)
80(176)
60 (140)
100(212)

96
1440
1440
168
96

50
65
65
75
50

50
65
65
75
50

*耐汽油绝缘和/或护套的试样应按UL1581 第480.9 条浸入23±1℃(73.4±1.8℉)的17%水+83%
ASTM 燃油C 的混合液中30 天。
*对于浸汽油后的耐汽油绝缘和/或护套的试样,抗张强度和伸长率值应大于等于未老化试样值的
80%。





返回页首》



氟塑料使用特性简介

聚全氟乙丙烯(FEP):简称F-46,是四氟乙烯和六氟丙烯的共聚物,六氟丙烯的含量约15%左右,是聚四氟乙烯的改性材料。
F-46在电线电缆生产中广泛应用于高温高频下使用的电子设备传输电线、电子计算机内部的连接线、航空宇宙用电线及其特种种用途安装线、油泵电缆和潜油电机绕组线的绝缘层。
电绝缘性能:F-46树脂的体积电阻率很高,一般大于1015Ω•m,且随温度变化甚微,也不受水和潮气的影响。耐电弧大于165s。F-46的击穿场强随厚度的减少而提高,当厚度大于1mm,击穿场强在30KV/mm以上,但不随温度的变化而变化。
热性能:F-46树脂的耐热性能仅次于聚四氟乙烯,能在-85~+200℃的温度范围内连续使用。即使在-200℃和+260℃的极限情况下,其性能也不恶化,可以短时间使用。
耐化学稳定性:F-46耐化学稳定性与聚四氟乙烯相似,具有优异的耐化学稳定性。除与高温下的氟元素、熔融的碱金属和三氟化氯等发生反应外,与其他化学药品接触时均不被腐蚀。
力学性能:F-46与聚四氟乙烯相比,硬度及抗拉强度略有提高,磨擦系数也比聚四氟乙烯略大。常温下,F-46具有较好的耐蠕变性能;但当温度高于100℃时,耐蠕变性能反而不及聚四氟乙烯。
四氟乙烯-全氟烷基乙烯基醚共聚物(简称PFA):它是由全氟烷基乙烯基醚改性聚四氟乙烯而得到树脂。它改善了聚四氟乙烯加工困难的缺点,又使其性能和长期使用温度基本接近或保持聚四氟乙烯的水平。PFA具有明显的熔点,能够熔融加工,但又保持了聚四氟乙烯的全部特点,故称为“可熔性聚四氟乙烯”。
力学性能:PFA树脂在室温下的机械强度与聚四氟乙烯和F-46相仿,但高温(250℃)时却高于后二者之上,且坚韧而柔软,使PFA树脂的力学性能非常突出。
电气性能:PFA树脂的电绝缘性能几乎与聚四氟乙烯无什么差别。体积电阻率一般大于1018Ω•m。表面电阻率大于1016Ω。绝缘击穿强度8KV/0.1mm。
耐热性能:PFA树脂的熔点在聚四氟乙烯和F-46之间,使用温度与聚四氟乙烯相同,为260℃,即使在285℃下经过了2500h后,仍能保持原有力学性能,显示了它优异的热稳定性能。
耐化学性和其他特性:PFA树脂的耐化学药品性能优良,与聚四氟乙烯和F-46树脂的化学稳定性相同,PFA树脂不粘、不燃、低磨擦系数和耐环境应力开裂。
在电线电缆产品中凡要求具有四氟乙烯特性而用聚四氟乙烯不能加工者,都可以用PFA树脂代替。电线电缆生产中,PFA树脂常用于制造大长度、大外径的耐高温电线,如耐高温航空电线,同轴电缆、石油勘探电缆等。
聚四氟乙烯(TFE或PTFE)简称F-4,是一种工程塑料,它具有其他各种工程塑料的特点,它广泛的频率范围及高低温使用范围、优异的化学稳定性、高的电绝缘性、突出的表面不粘性、良好的润滑性以及耐大气老化性能,使聚四氟乙烯在解决工业各部门的有关技术中,属于其他塑料之上。
电绝缘性能:聚四氟乙烯具有优异的电绝缘性能。绝缘电阻很高,其体积电阻率一般大于1015Ω•m,表面电阻率大于1016Ω,即使长期浸于?水中变化也不显著,随温度变化也不大。聚四氟乙烯击穿场强很高,很薄的聚四氟乙烯薄膜,其击穿场强可达200KV/mm;但随厚度的增大,击穿场强逐渐降?低,温度的变化对击穿场强影响不大。聚四氟乙烯对电弧作用极为稳定,通常耐电弧大于300s。这是因为在高压表面放电时,不会因炭化而引起短路,仅分解成?气体。即使在长期露天暴露,受到尘埃雨雾的污染情况下,也不影响其绝缘性。
热性能:聚四氟乙烯具有相当高的耐热性和耐低温性能,用聚四氟乙烯作绝缘的电线,完全可以在-60℃~+260℃下使用。
耐化学稳定性:具有突出的耐化学稳定性。它不受强腐蚀性的化学试剂侵蚀,亦不与之发生任何作用;它也完全不受王水、氢氟酸、浓硫酸、氯磺酸、热的浓硫酸、沸腾的苛性钠溶液、氯气以及过氧化氢的作用。即使在高温下,聚四氟乙烯也能保持很好的耐化学稳定性。
力学性能:由于聚四氟乙烯大分子之间的相互引力较小,因此它只有中等的抗拉强度。但其抗拉强度和伸长率完全符合电线电缆的使用要求。在高温下,当温度不超过250℃时,聚四氟乙烯的力学性能变化不大。
其他性能:有很好的耐湿性和耐水性,浸水后的绝缘电阻基本不变,是其他材料所不及的。耐气候性优良。
由于聚四氟乙烯具有以上突出优点,因此用聚四氟乙烯作绝缘的电线广泛用于宇宙航空中的各类布线,同轴电缆的绝缘,还有热电偶线的绝缘和H级F级电机引出线等。
绝缘材料性能一览表:


绝缘材料名称

连续使用温度

比重

抗张强度
(Mpa)

伸长率

熔点

PFA(可熔4F)

可熔性聚四氯乙烯

250℃

2.16

21-26

275-300

300±10

FEP(F46)

聚全氟乙烯

200℃

2.15

21

300

265±10

ETFE(F40)

四氟乙烯共聚物

180℃

2.2

15-18

150

325±10

ECTFE(F30)

三氟氯乙烯

150℃

1.7

31-49

200

235±10

PP

聚丙烯

90℃

0.9

2900-4500

700

220±10

PE

聚乙烯

70-125℃

0.9-1.2

1500-2200

180-600

220±10

PU

聚氨酯

100℃

1.3

1000-3500

40-400

180±10

PVC

聚氯乙烯

60-105℃

1.4

1500-4500

550-750

170±10



返回页首》

电缆的趋肤效应,趋肤深度

在传输的频率在甚高频或微波级别时,一般会使用镀银(已知的除超导体外最好的导体)的导线,因为这时趋肤深度如此之小,以至于更厚的银层已经是浪费了。
举例:在铜质导线中,趋肤深度和频率的关系大致如下
频率 δ
60 Hz 8.57 mm
10 kHz 0.66 mm
100 kHz 0.21 mm
1 MHz 66 μm
10 MHz 21 μm

导线集肤效应公式如下:25℃时  d=66.1/SQRT(F)
100℃时 d=76.5/SQRT(F)
*SQRT(F)就是频率的二次方。
根据公式可知:常温下,100Mhz的高频信号,d=0.0066毫米;住宅交流电只有50赫兹,集肤深度d=9.35毫米,也就是[B]意味着50hz交流电通过一根直径为20毫米的导线,其中心的电流强度为边缘的1/2.718。
趋肤效应也叫做“集肤效应”。交变电流通过导体时,由于感应作用引起导体截面上电流分布不均匀,愈近导体表面电流密度越大。这种现象称“趋肤效应”。趋肤效应使导体的有效电阻增加。频率越高,趋肤效应越显著。当频率很高的电流通过导线时,可以认为电流只在导线表面上很薄的一层中流过,这等效于导线的截面减小,电阻增大。既然导线的中心部分几乎没有电流通过,就可以把这中心部分除去以节约材料。因此,在高频电路中可以采用空心导线代替实心导线。此外,为了削弱趋肤效应,在高频电路中也往往使用多股相互绝缘细导线编织成束来代替同样截面积的粗导线,这种多股线束称为辫线。在工业应用方面,利用趋肤效应可以对金属进行表面淬火。
高频时有使用空心铜管的,还可以通冷却水。

在一电阻负载为主导的环境中电源频率不是太高的情况下就是表现为“趋肤效”应,但是在以电感或电容性负载为主导的、高频电源的环境中则是“接近效应”更为突出。
定义:对于导体中的交流电流,靠近导体表面处的电流密度大于导体内部电流密度的现象。随着电流频率的提高,趋肤效应使导体的电阻增大,电感减小,频率越高,趋肤效应越显著,但也与导体的几何尺寸体量有关。
在高频电路中,电子线路元器件体量较小,频率有较高时,出现明显的趋肤效应,这是较大线径的导体会因为趋肤效应而导体利用效率下降,电流趋向于只在表面部分传导,中心部分电流密度减低,这时可以采用空心导线代替实心导线,同时导线规格甚至可以不需要常规计算得那么大但需要注意散热措施到位。为了削弱趋肤效应,在高频电路中也往往使用“辫线”措施使得导线利用效率提高,成本更经济。此外在导线包绕空间较大而电磁场密度较大的场合,也要注意趋肤效应,比如代理变压器产品,其铁芯在工作时是磁感应密度极高的区域,套在铁芯外部的线圈处于高磁通密度范围内,这时候导线的趋肤效应非常可观不可忽视,否则在线圈导体表面的电流密度过大,发热明显而且不得不制作很大截面积的线圈,既不经济也不可行。这时候就是使用多股小截面积的导线用绝缘纸包裹制成纸包线或者以绝缘纸、树脂等绝缘体灌注填充铜导线间隙做成组合导线,在制作变压器线圈,在相同的截面积下,整块铜锭卷制的导体肯定要不多股小截面纸包导线的利用效率低(当一块导体的外缘周长被分散于其内部无数个小区间的外缘周长所取代时,后者的周长数值会远远大于前者,对于截面积也有同样的结论,而且这些结论在性质上与内部小区域的分割方式无关,无论是分割成无数小矩形、小正方形、小圆型都有一样),发热状况差,而且因为漏磁和磁通不均匀导致的其他问题会更加明显。采用后者的方案则避免上述问题并且可以通过导线换位、导线纠结、安装油隙垫块和换位垫块的方式大大改善绝缘状况、散热条件,有效应对(不是遏制,因为屈服效应仍就存在)趋肤效应(也称趋表效应)。
,例如收音机磁性天线上的线圈用多股互相绝缘的导线绕制,电视室外天线不用金属棒而用直径较粗的金属管制作,都是为了增加导体的表面积,
由于集肤效应在工频下没明显的结果,所以将母排、电缆等做成空心的是没用的。频率高的输送导体都是空心的,比如晶闸管中频炉。



返回页首》

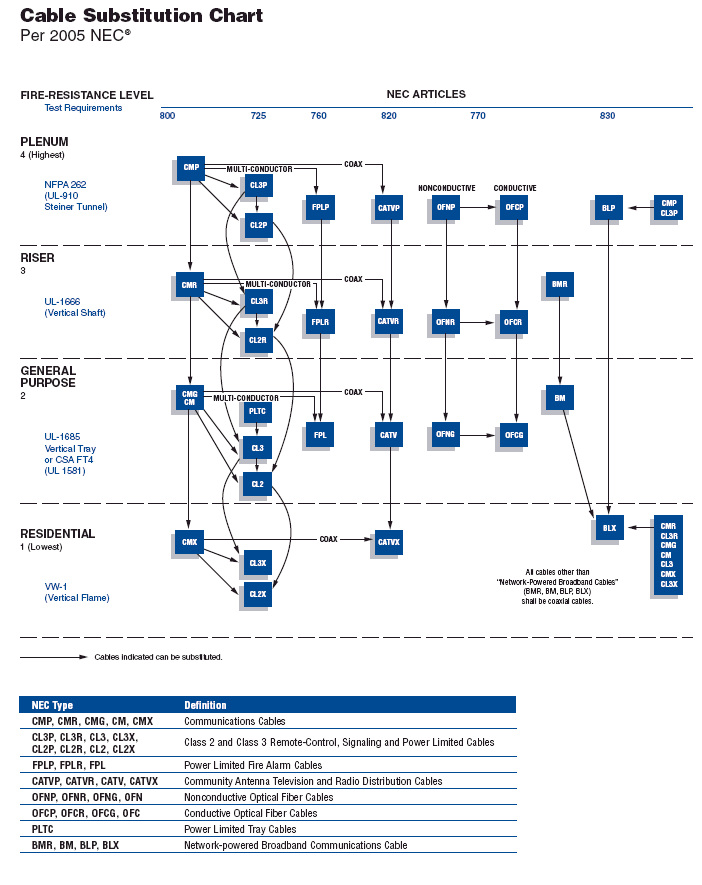

FLAME TEST RATINGS

The National Electrical Code is a set of guidelines describing procedures which minimize the hazards of electrical shock, fires, and explosions caused by electrical installation. The text of the NEC is contained in nine chapters, each chapter broken into individual articles. NEC types are acronyms consisting of a prefix describing cable type (e.g. coax, CATV, fiber optic) and a suffix indicating the type of flame test it has passed and where it can be installed. Articles describing wire and cable products — including required cable markings — are listed in the chart below.

NEC

Article
Type

Test Requirement NEC Article
Plenum Riser Commercial Residential
725   CL2 Class 2 Cables CL2P CL2R CL2 CL2X*
CL3 Class 3 cables CL3P CL3R CL3 CL3X*
PLTC

A stand-alone class. This is

a power limited tray cable —

a CL3-type cable which can be

used outdoors, is sunlight- and

moisture-resistant and must

pass the Vertical Tray flame test.

None None PLTC None
760 FPL

Power limited, fire protective signaling circuit cable

FPLP FPLR FPL None
770 OFC

Fiber cable also containing metallic conductors

OFCP OFCR OFCG, OFC None
OFN Fiber cable only containing optical fibers OFNP OFNR OFNG, OFN None
800 CM Communications CMP CMR CMG, CM CMX*
MP Multi-Purpose Cables MPP MPR MPG, MP None
820 CATV Community antenna television CATVP CATVR CATV CATVX**
830 BM Network-powered broadband communications cable BLP BMR BM BLX
*Cable diameter must be less than 0.250″ **Cable diameter must be less than 0.375″

C(UL) Certifications;
UL/NEC-Approved cables may also be C(UL)/CEC-Approved as communications cables meeting the requirements of the Bi-National Standard CSA C22.2 No. 214/UL 444 and Section 60 of the Canadian Electrical Code, Part I (CEC). The C(UL) cable designation (and its meaning) would be one of the following:

1. CMP — Cable meeting CSA FT6 or NFPA 262 (UL 910);
2. CMR — Cable meeting UL 1666, CSA FT4
3. CMG — Cable meeting CSA FT4
4. CM — Cable meeting UL 1685 (UL 1581, Sec. 1160) Vertical-Tray, CSA FT1
5. CMX — Cable meeting UL 1581, Sec. 1080 (VW-1), CSA FT1
6. CMH — Cable meeting CSA FT1.

FLAME TESTS
FT1

FT1 Vertical Flame Test — per C.S.A. C22.2 No. 0.3-92 Para 4.11.1

A finished cable shall not propagate a flame or continue to burn for more than one (1) minute after five (5) fifteen (15) second applications of the test flame. There is an interval of fifteen (15) seconds between flame applications. The flame test shall be performed in accordance with Para 4.11.1 of Canadian Standards Association (CSA) Standard C22.2 No. 0.3. In addition, if more than 25% of the indicator flag is burned, the test cable fails. FT1 Cables can be used in Combustible buildings.

FT4

FT4 Vertical Flame Test — Cables in Cable Trays per C.S.A. C22.2 No. 0.3-92 Para 4.11.4

The FT4 Vertical Flame Test — Cables in Cable Trays is similar to the UL-1685 Vertical Tray Flame Test, but is more severe. The FT4 test has its burner mounted at 20° from the horizontal with the burner ports facing up. The UL-1685 Vertical Tray has its burner at 0° from the horizontal. The FT4 samples must be larger than 13mm (.512″) in diameter. If not, then the cable samples are grouped in units of at least three (3) to obtain a grouped overall diameter of 13mm. The UL-1581 Vertical Tray does not distinguish on cable size. The FT4 has a maximum char height of 1.5 m (59″) measured from the lower edge of the burner face. The UL-1685 has a flame height allowable up to approximately 78″ measured from the burner. FT4 Cables can be used in Non-Combustible buildings.

FT6

FT6 Horizontal Flame & Smoke Test — per C.S.A. C22.2 No. 0.3-92 Appendix B

Products passing the FT6 Horizontal Flame and Smoke Test are designated FT6 in the column where the trade number appears. This test is for cables which must pass a Horizontal Flame and Smoke Test in accordance with ANSI/NFPA Standard 262-1985 (UL-910). The maximum flame spread shall be 1.50 meters (4.92 ft.). The smoke density shall be 0.5 at peak optical density and 0.15 at maximum average optical density.

Combustible Construction

Combustible Construction; means that type of construction that does not meet the requirement for noncombustible construction. Combustible means that a material fails to meet the acceptance criteria of CAN/ULC S114, (Standard Method of test for determination of non-combustibility in Building Materials) (ref: NBC Part 1 Section 1.1.3.2).

Noncombustible Construction

Non-Combustible Construction; means that type of construction in which a degree of fire safety is

attained by the use of noncombustible materials for structural members and other building

assemblies. Non-Combustible means that a material meets the acceptance criteria of CAN/ULC S114, (Standard Method of test for determination of non-combustibility in Building Materials) (ref: NBC Part 1.1.3.2).

Cable Substitution Hierarchy as per C22.2 #214 — Communication Cables

The following cable substitution may be used:

A. Communication cables marked MPP, CMP, MPR, CMR, MPG, CMG, MP, CM, CMX, CMH, FT6, and FT4 have been found to meet the standard criteria for FT1.


B.
Communication cables marked MPP, CMP, MPR, CMR, MPG, CMG, and FT6 have been found to meet the standard criteria for FT4.


C.
Communication cables marked MPP and CMP have been found to meet the standard criteria for FT6.
